Light Research

Kimbell Museum

This museum was designed by Louis Kahn. In this museum the light from outside came into the building from a slight crevice where the wall and roof meet and that light was able to bounce off the curved ceilings.

Convent La Tourette

The Convent La Tourette was designed by Le Corbusier and in this image he uses light canons to control the light that enters the building.

St. Ignatius

The St. Ignatius was designed by Steven Hall and this image shows the windows from the inside of the chapel and how the use of reflectors were used to control light.

Notre Dame de Haut

The Notre Dame de Haut was designed by Le Corbusier as well and in this image he uses small shapes like rectangles, squares, and circles to bring light into the hut. These patterns are shown all throughout this design.

Contextual Analysis

Sun Angles

Summer

Spring

Site and Sorting

Winter

Fall

Hierarchy

Main Chapel

Memorial Chapel

Meditation Chapel

Secular

Sorting

Religious:
Main Chapel
Memorial Chapel
Meditation Chapel

Secular:
Secretary Office
Clergy Office
Conference Room
Library
Storage
Bathroom

Design Process

Betz - Sahara Baksh project 3 12-11 (1)-Temp0001.png

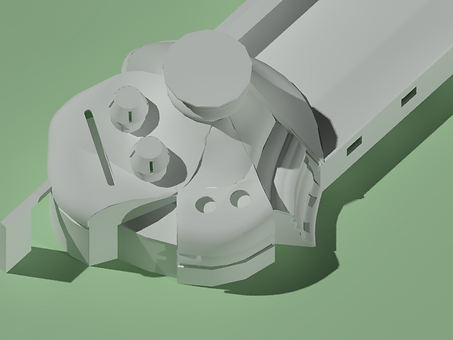

In my chapel, I incorporated the shapes and designs that Corbusier used in the Notre Dame de Haut on the roofs

Betz - Sahara Baksh project 3 12-11 (1)-Temp0002.png

I used Corbusier's idea of light canons to help control the light on the inside. I shaped the light canons a bit differently to match the Notre Dame de Haut shapes.

Betz - Sahara Baksh project 3 12-11 (1)-Temp0010.png

Floor Plan

I used Hall's idea of using reflectors on the inside of windows to control the lights direction, so here the light would be reflected onto the curved wall and roof.
